80mm Sprachsynthesizer
BDV

Dieser BDV Sprachmelder arbeitet mit voraufgezeichneten MP3-Dateien und bietet dadurch eine sehr gute Wiedergabequalität. Konzipiert für Einbaumontage, dadurch sauberes, integriertes Aussehen bei fast jedem Einsatzbereich. Über die SD-Karte von Patlite (separat zu kaufen) und die kostenlose (herunterladbare) Software von Patlite ist die Programmierung sehr einfach.

  • Kontaktsteuerung
  • □80
  • MP3 Signalgeber
  • Stimme
  • 87dB
  • Innen/Außen
  • IP54
  • 80mm Sprachsynthesizer BDV
  • Nur verfügbar in der Ausführung für Einbaumontage.
  • Kann trotz der kompakten Größe einen lauten Klang von bis zu 87 dB (bei 1 m) erzeugen.
  • Mit dem Lautstärkeregler auf der Frontblende kann die Lautstärke bequem angepasst werden.
  • Durch den Einsatz von SD-Karten ist es möglich, Ansagen zu wechseln, ohne das Gerät zu demontieren.
  • Umweltverträglich, da das Gerät den EU-Richtlinie RoHS entspricht.
  • Für unterschiedliche Anwendungen stehen verschiedene Wiedergabemodi zur Auswahl.
  • Als Standard-Option gibt es den Binäreingang, über den unter bis zu 15 verschiedenen Ansagen gewählt werden kann.
  • Unterstützt Eingangsselektion durch Verwendung eines NPN Open-Collector-Transistor.
  • Das Gerät entspricht den EU-Richtlinien und trägt auch das CE-Zeichen (nur BDV-15JF).
  • Das Gerät gibt es in zwei Farben, so dass Sie die Farbversion wählen können, die am besten zu Ihrer Installation passt.
  • Schutzklasse: IP54 (nur vorne, wenn bündiger Abschluss nach Einbaumontage).

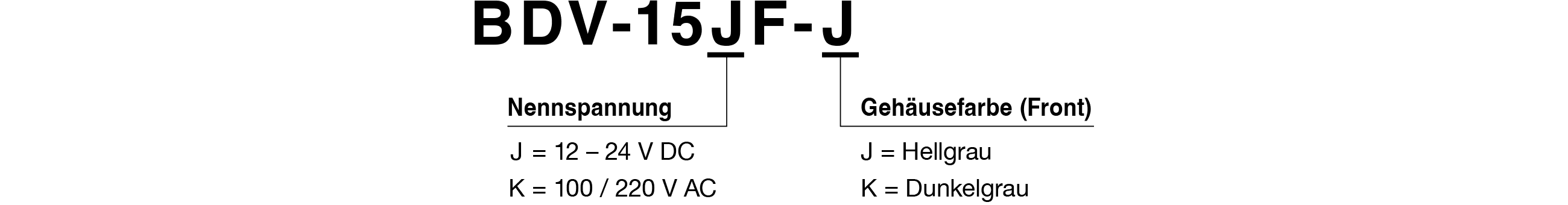

Modellspezifikationen

ABMESSUNGEN - 80mm x 80mm x 94.7mm
NENN SPANNUNG - 12/24V DC
- 100/220V AC
GEHÄUSEFARBE - Dunkelgrau
- Hellgrau
LAUTSTÄRKE - Maximal 87dB in 1 Meter Entfernung
SPEICHERUNG VON TÖNEN - Ungefähre Aufnahmezeit: 63 Sekunden (Bitrate=64k/s)
KANALAUSWAHL - Auswahl von 1 von 4 Kanälen durch Signalinput zu 1 oder 4 Klemmen
- Im Binärmodus Auswahl von 1 von 15 Kanälen durch Signalinputs unter 4 Klemmen
KONFORMITÄTSSTANDARDS - CE-Kennzeichnung
- RoHS
- MPEG Layer-3 Audiocodierungstechnologie lizenziert von Fraunhofer IIS und Thompson Licensing
SCHUTZKLASSE - IP54
FUNKTIONEN - Lautstärkereduktionsmodus verringert die Lautstärke um 10dB

(*) Der Download -Service der Daten auf dieser Website soll den folgenden "" zugestimmt haben.

(*) Der Download -Service der Daten auf dieser Website soll den folgenden "" zugestimmt haben.

BDV  

BDV  

Ersatzteile

Category No. Part Name Part Number Required Qty Specification Approximate time of replacement
Slot Waterproof Cover
C25110015-F1 1

-

-

Terminal Cover
C15140003-F1 2

-

-

Mounting Bracket (2 pieces)
V82100001-F1 2

-

-
