75mm Sprachsynthesizer
BSV

Besonders der flache MP3-Sprachmelder BSV sorgt für exzellente Soundqualität. Mit seinem kompakten Design kann der BSV-Sprachmelder nahezu überall installiert werden und passt selbst in extrem schmale Montageplatten. Die Programmierung erfolgt über eine SD-Karte (separat erhältlich) und eine kostenlose Anwendungssoftware.

  • Kontaktsteuerung
  • □75
  • MP3 Signalgeber
  • Töne/Stimme
  • 87dB
  • Innen/Außen(Schalttafeleinbau, nur aufrecht)
  • IP54
  • 75mm Sprachsynthesizer BSV
  • Extra-schmales Design
    Mit nur 19,9 mm Tiefe ist der BSV das kleinste Gerät dieser Art in unserer Produktlinie und erfüllt alle Anforderungen zur Anlagenminiaturisierung. Trotz der flachen Bauweise ist eine maximale Lautstärke von 87 dB (bei 1 m) möglich. Die Lautstärkeregelung erfolgt über die Frontabdeckung. Der Stromverbrauch ist mit 3,5 W äußerst gering.

  • Leichte Installation
    Die Abdeckung ist für Installationszwecke und zur Lautstärkeanpassung leicht abzunehmen, denn dazu ist nur der Zugriff von vorne erforderlich. Das spart Zeit auch z. B. für die Wartung.

  • Einfache Montage
    Sämtliche Einstellungen - von der Anbringung bis hin zur Lautstärkeregelung - werden an der Vorderseite vorgenommen. Das spart Zeit bei der Montage sowie bei Wartungsarbeiten.

  • Überschreiben von Nachrrichten
    Der BSV-Sprachmelder verfügt standarmäßig über ein SD-Kartenfach. Dies erlaubt das Schreiben und Überschreiben von Nachrichten durch einfache Änderung der MP3-Daten. Die spezielle Anwendungssoftware ist für diese Änderung nicht erforderlich.

  • Neu: Längere Spielzeit
    Die Wiedergabezeit des Modells BSV-L beträgt 520 Sekunden (Bitrate = 64k/s) Dieses Zusatz-Feature ist besonders nützlich für detaillierte Ansagen oder Nachrichten, die in mehreren Sprachen abgespielt werden müssen.
  • Modell mit langer Spielzeit: Ungefähre Aufnahmezeit: 520 Sekunden (Bitrate = 64k/s)
  • Modell mit Standard-Spielzeit: Ungefähre Aufnahmezeit: 62 Sekunden (Bitrate = 64k/s)

Movie

Modellspezifikationen

RATED VOLTAGE - 12/24V DC
MOUNTING - Panel mount in the Upright Position
BODY COLOR - Dark Gray
- Off White
- Silver
VOLUME - Maximum 87dB at 1 meter (For Panel Mount)
- Maximum 85dB at 1 meter (For Wall Mount)
SOUND STORAGE - Long Play Model: Approximate Recording Time: 520 seconds (Bit rate=64k/s)
- Standard Model: Approximate Recording Time: 63 seconds (Bit rate=64k/s)
SOUND SELECTION - Bit Input: 4
- Binary Input: 15
CONFORMITY STANDARDS - CE Marking
- UL
- RoHS
PROTECTION RATING - Panel Mount: IP54 (Upright Only)
- Wall Mount: IP20
PLAYBACK OPTIONS - Normal Playback
- Hold Playback
- Priority Input Playback
- Memory Playback
CONTROL OPTIONS - PNP Transistor
- NPN Transistor
OPTIONS - Playlist Editor (Free Software Version)
- SDV-2GP: SD Card (for mp3 file transfer and storage)

(*) Der Download -Service der Daten auf dieser Website soll den folgenden "" zugestimmt haben.

(*) Der Download -Service der Daten auf dieser Website soll den folgenden "" zugestimmt haben.

BSV/BSV-L  

BSV/BSV-L  

Ersatzteile

Category No. Part Name Part Number Required Qty Specification Approximate time of replacement

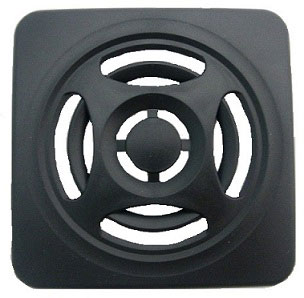

Front Cover: Off-white
V21110070-1F1 1
Front Cover: Dark Gray
V21110070-2F1 1
Mounting Screw and O-ring (2 pieces)
Z33552121-0308F1 1

-

-
