RFT
Akustikalarm & LED Signalturm

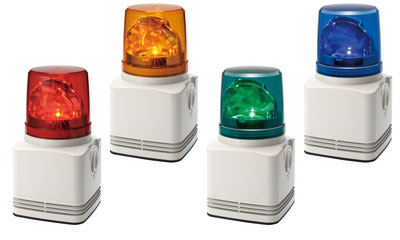

The RFT is an LED Rotating Warning Light with built-in alarm sounds controllable for up to 32 sounds with binary or bit input.

Akustikalarm & LED Signalturm
Akustikalarm & LED Signalturm
  • Produktübersicht
  • Häufig gestellte Fragen
  • Katalog-Anforderung
  • Kontakt
  • Accessories

Produktmerkmale

- Sound reduction feature to drop the volume by about -10dB (at 1m) when an input signal is received (Binary Mode only).
- Using an SD Card can allow customization of one sound group to be re-arranged, using any of the pre-installed sounds.
- Compliance with the RoHS Directive makes it environmentally friendly.
- Complies with EU directives and includes the CE mark (for 24V type).
- Can be controlled with NPN open-collector transistor inputs.
- A side panel access allows an easier volume adjustment.
- Produces a loud sound of up to 90dB (at 1m).

Modellspezifikationen

DIMENSIONS - 100mm diameter
OPERATING VOLTAGES - DC 24V
- AC 100V
- AC 220V
AUDIBLE STYLE - Pre-recorded sounds with sound group customization with an SD Card
VOLUME - Maximum 95dB at 1 meter with adjustable volume control
BODY STYLE - Sound reduction of -10dB for Night-time Applications
BODY COLOR - Beige Body
GLOBE COLORS Colors available in:

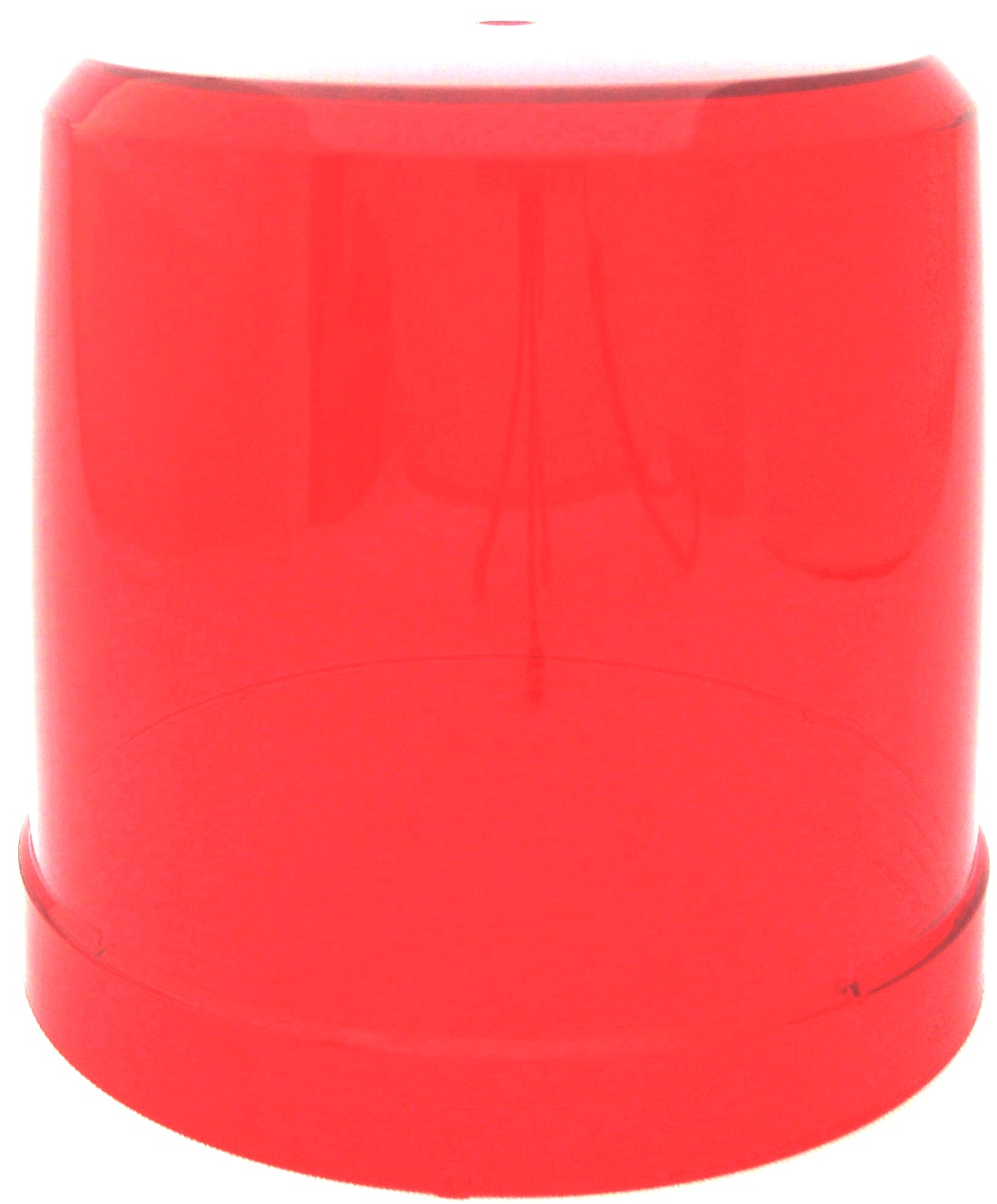

- Red

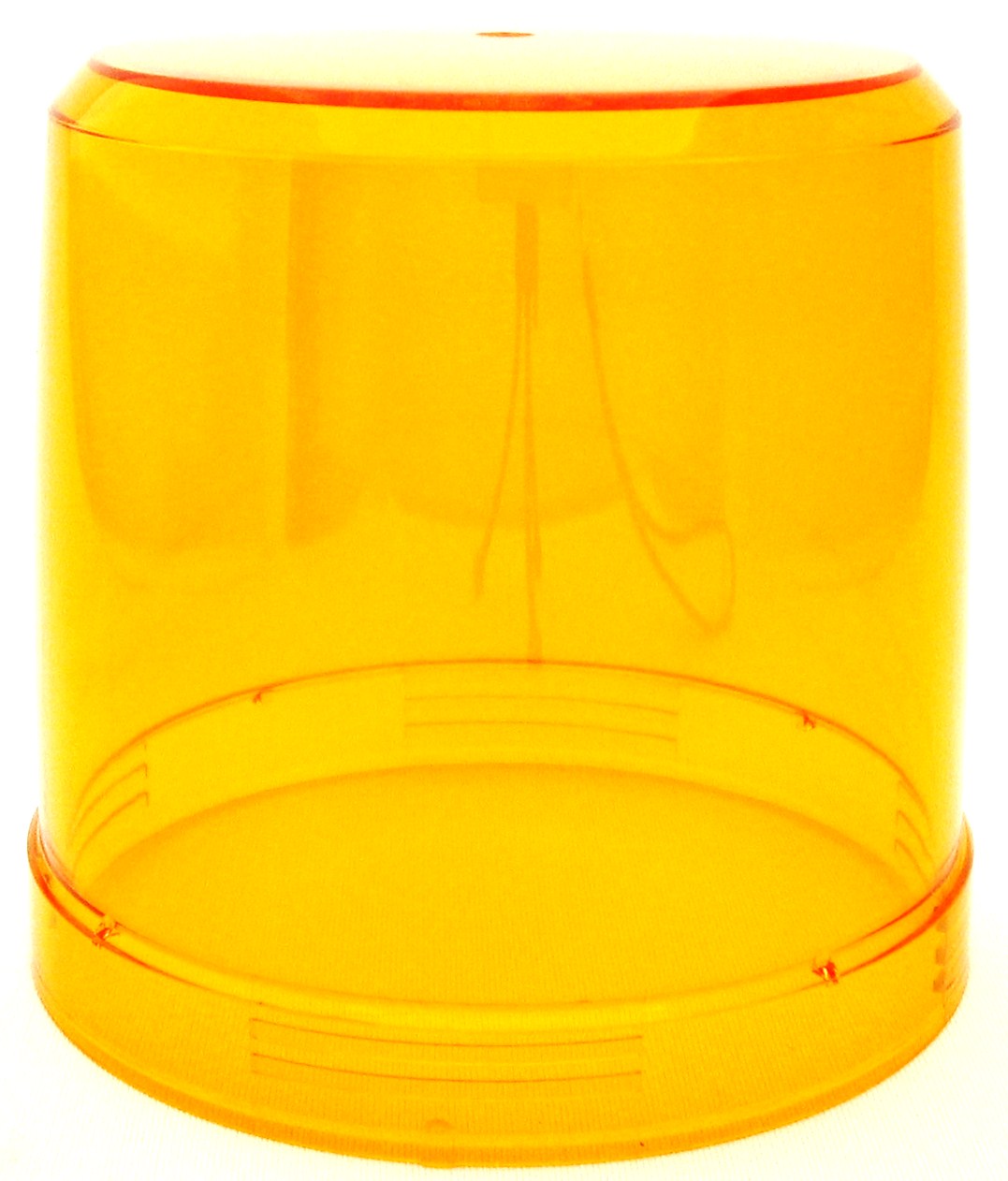

- Amber

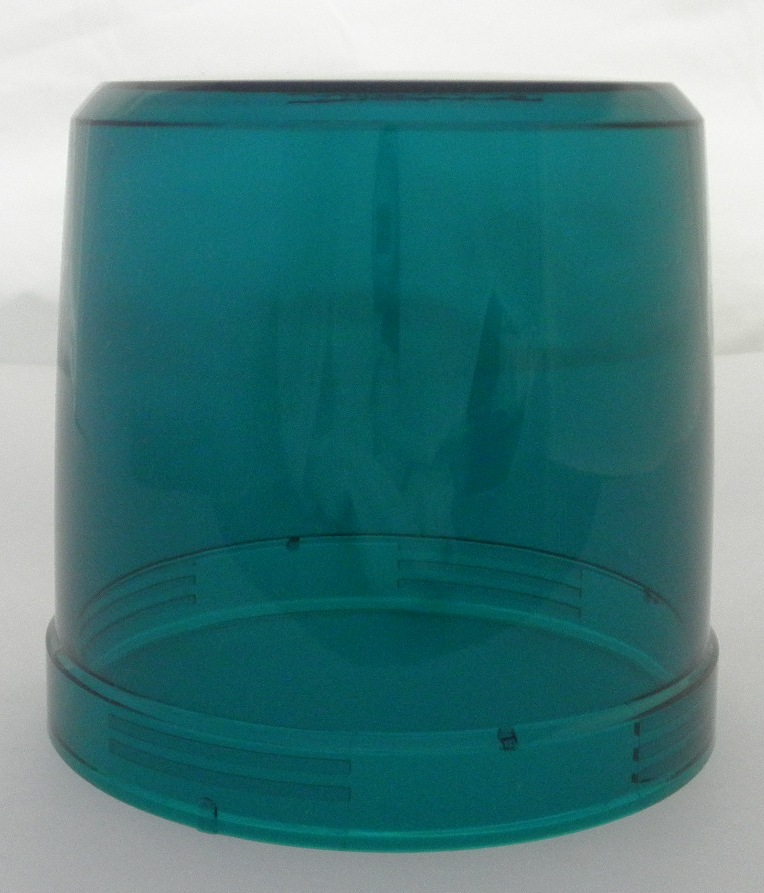

- Green

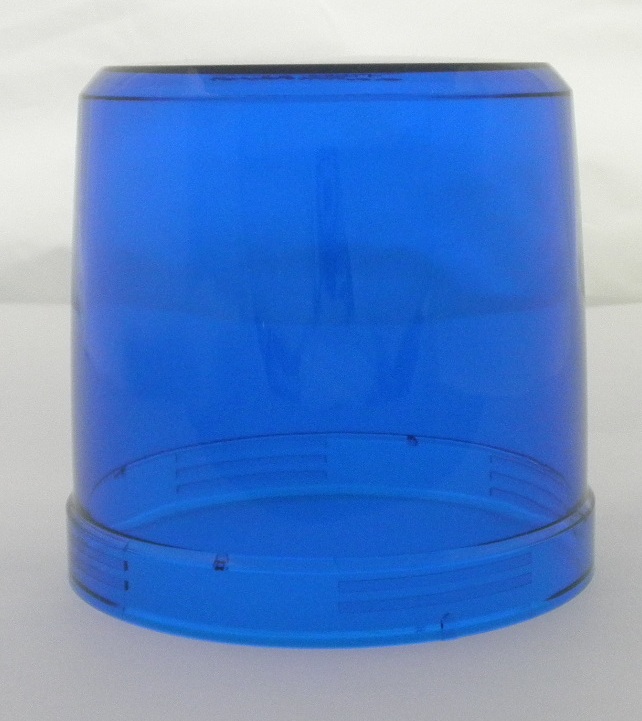

- Blue
GLOBE MATERIAL - Polycarbonate Resin
PROTECTION RATING - IP54
OPTIONS - RF-001
- RF-002
- SDV-128P
