Leiterplatte für MP3 Wiedergabe

Audioansagen können auf bis zu 127 Kanälen aufgenommen werden. Ideal für Anlagen oder Betriebsbereiche, wo Arbeitsinstruktionen per Audioansage erforderlich sind.

  • Kontaktsteuerung
  • MP3 Signalgeber
  • Stimme
  • 105dB(@4WLautsprecherausgang)

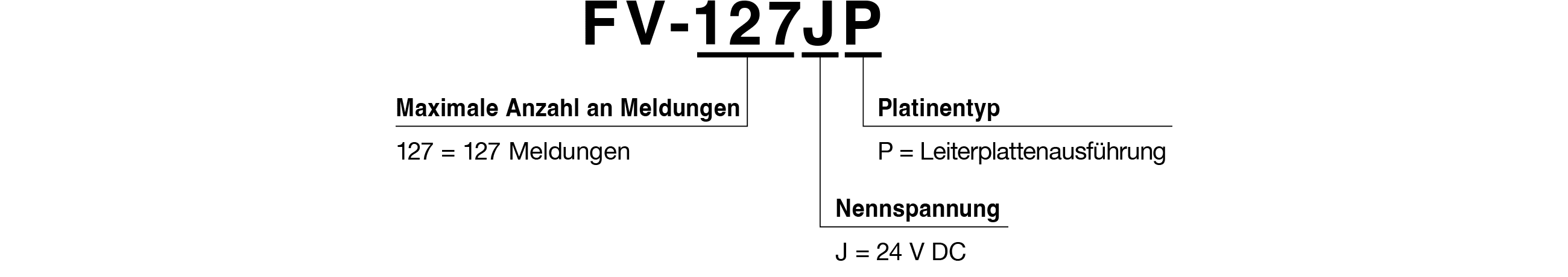

  • Leiterplatte für MP3 Wiedergabe FV-127JP

Komprimierte Audiodateien im MP3-Format ermöglichen eine lange Wiedergabedauer bei qualitativ hochwertigem Klang. • In einem internen Speicher können Audioansagen mit bis zu 8 Minuten Länge gespeichert werden. • Wird eine SD-Karte als externer Speicher verwendet, ist eine Wiedergabedauer von 240 Minuten möglich. (MP3-Daten mit 64 kbit/s bei 2GB SD-Karte) Audioansagen können entfernt und überschrieben werden. • Bei Verwendung einer optionalen SD-Karte können Sie mit dem Playlist-Editor (im Lieferumfang) Audioansagen einfach neu programmieren und überschreiben. Auch können die Audioansagen, die im Gerät gespeichert sind, auf die SD-Karte gebracht werden. 3-stufige Lautstärkeregelung • Durch Zuführung eines externen Signals kann die Lautstärke auf 3-stufig reduziert werden. (-10dB, -20dB, -30dB bei 1m) • Verschiedene Wiedergabemodi. 5 Wiedergabemodi verfügbar. Äußerst zuverlässig im Betrieb. • Die Dauer des Eingangs-Ladevorgangs kann ausgewählt werden. (10 oder 50 msec) Bei Verlängerung des Eingangs-Ladevorgangs vergrößert sich der Rauschwiderstand. Maßnahmen gegen Störgeräusche je nach Einsatzumgebung durch entsprechende Pin-Setzung möglich. Weitere Funktionen • Durch Anschlussleiste sicherer und gesicherter Anschluss von Kabeln. • Ausgestattet mit Lautsprecher-Ausgang (2 W oder 4 W wählbar), AUX-Ausgang und BUSY-Ausgang • Nennspannung: 24 V DC (Betriebsspannungsbereich: 19 bis 29 V DC)
