Programmierbare mehrfarbige LED IO-Link Signalsäule

  • Netzwerkprodukte
  • IO-Link
  • Φ60
  • Dauerlicht
  • Blinken
  • Blitzen (Stroboskop)
  • Summer
  • 88dB
  • Innen
  • IP65
  • Mehrfarbig (21 Farben)

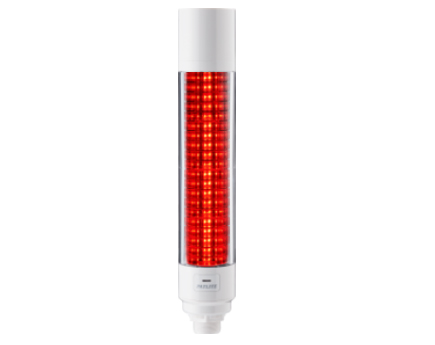

  • IO-Link-Signalsäule LB6-IL

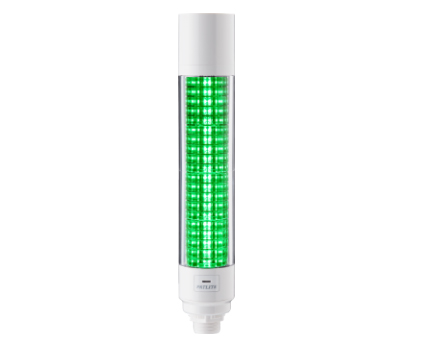

  • IO-Link-Signalsäule LB6-IL

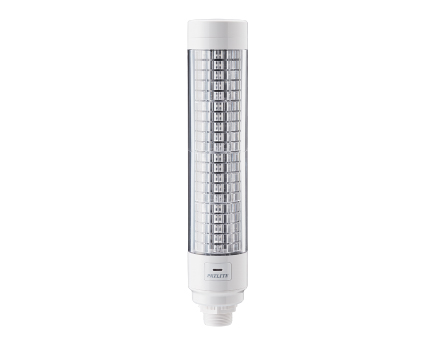

  • IO-Link-Signalsäule LB6-IL
  • IO-Link-Signalsäule LB6-IL

■3 Betriebsmodi unterstützen verschiedene Anwendungen

1. Einfacher Modus
Visualisierung des Gerätestatus
Einfaches Unterteilen des Leuchtenbereichs in 1 bis 5 Ebenen und freie Festlegung von Farben und Blinkmustern für jede Ebene.

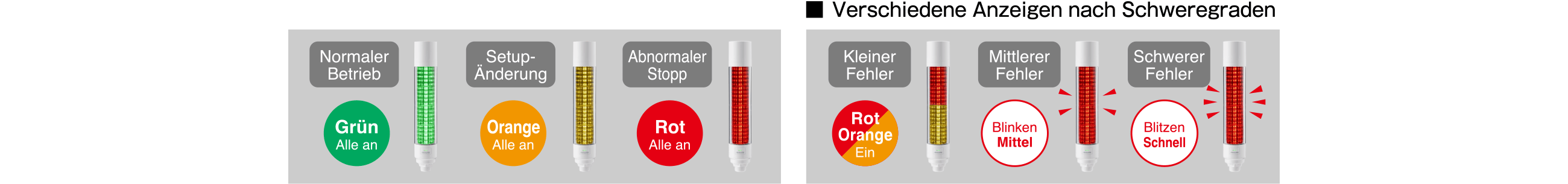

■Verschiedene Anzeigen nach Schweregraden

2. Füllstand Modus
Visualisierung von Füllstand und Temperatur
Voreingestelltes Beleuchtungsmuster kann je nach Füllstand aktiviert werden.
Materialbedarf und Änderungen des Maschinenstatus werden auf einfache Weise angezeigt.

3. Animationsmodus
Visualisierung der Taktzeit des Fertigungsprozesses
Visualisierung des Zeitverlaufs, indem die voreingestellten Farben von unten nach oben oder von oben nach unten geändert werden.


■Die einfache Verbindung reduziert Arbeitsstunden erheblich.

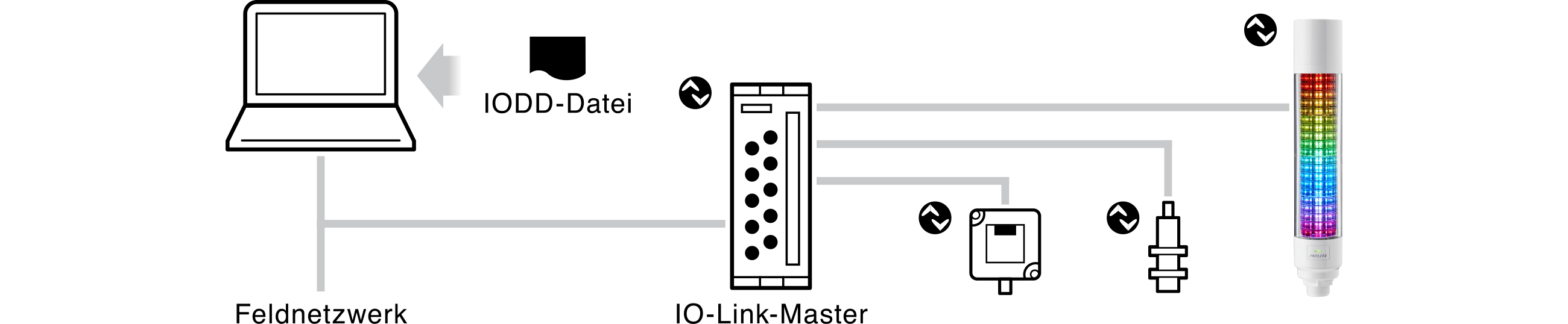

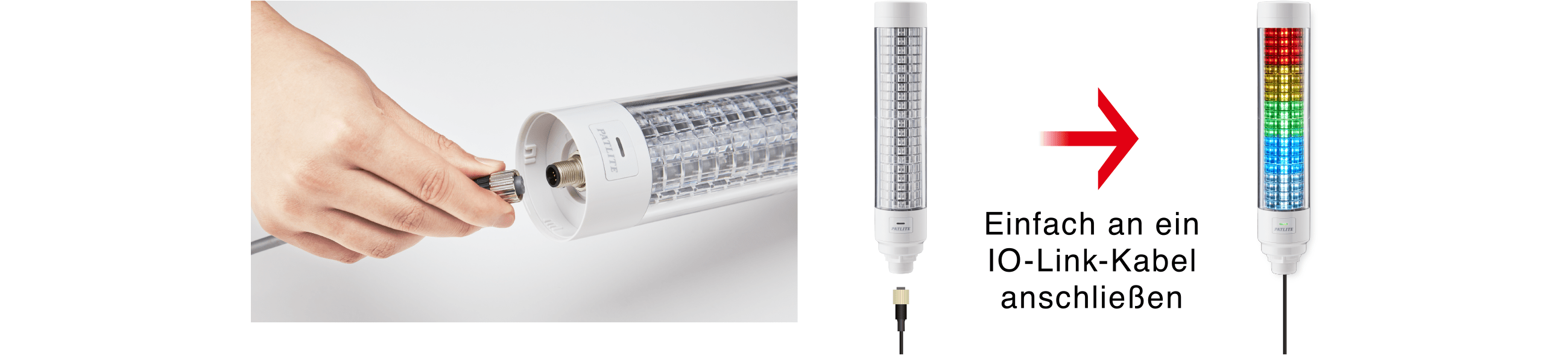

Die LB6 kann mühelos und werkzeuglos mit nur einem IO-Link-Kabel verkabelt werden.
Die LB6 stellt automatisch die werkseitigen Standardeinstellungen wieder her, wenn ein Ersatzkabel angeschlossen wird.


Verschiedene Anzeigen sind mit unserem einzigartigen und einfachen Einrichtungstool möglich.

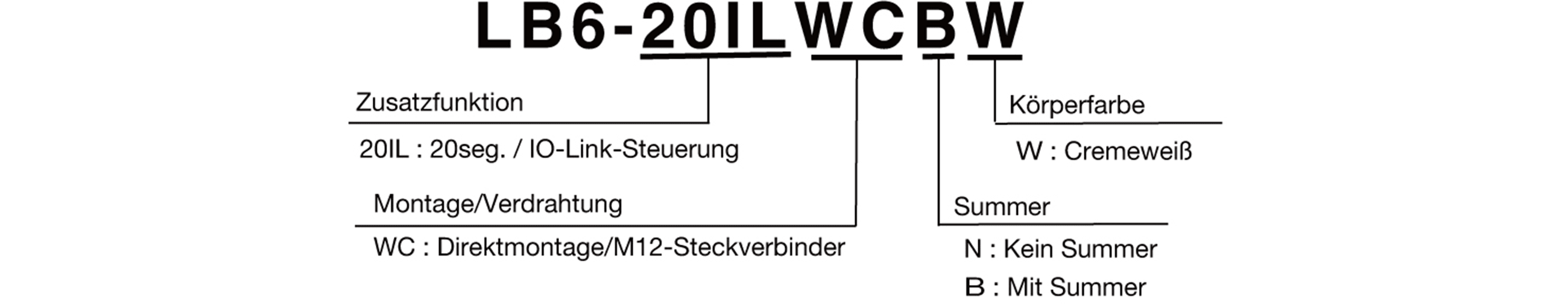

Modell Summer

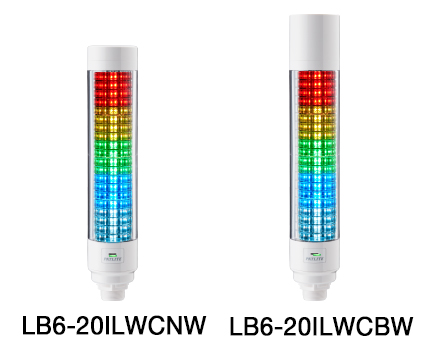

LB6-20ILWCBW Mit Summer
LB6-20ILWCNW Kein Summer




 Einfacher Modus         Füllstand Modus         Animationsmodus

(*) Der Download -Service der Daten auf dieser Website soll den folgenden "" zugestimmt haben.

(*) Der Download -Service der Daten auf dieser Website soll den folgenden "" zugestimmt haben.




Category No. Part Name Part Number Required Qty Specification Approximate time of replacement
B32310072-7F1 1

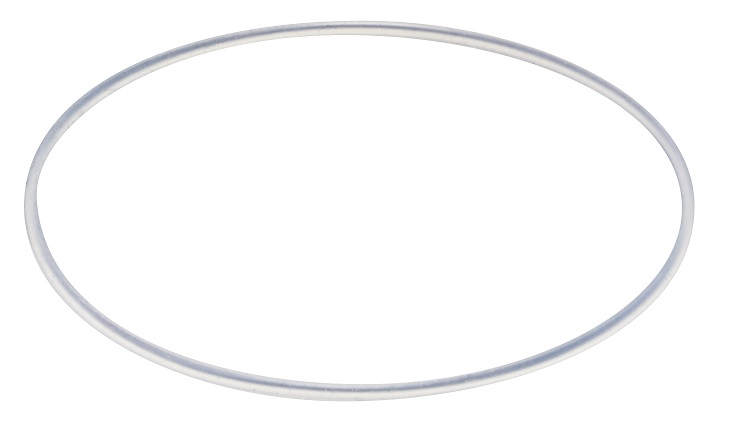

O-ring: (5 pieces)
