IO-Link Signalsäule

Standardisieren Sie Ihre Signalisierungsschnittstelle. Die IO-Link Signalsäule wird nahtlos über Ihre IO-Link Schnittstelle installiert und konfiguriert. IO-Link ist eine standardisierte IO-Technologie (IEC 61131-9): Feldbusneutral, Punkt-zu-Punkt Kommunikation, Universalschnittstelle!

  • Network Products
  • IO-Link
  • Signalsäule
  • Φ60
  • Dauerlicht
  • Blinken
  • Blitzen (Stroboskop)
  • Summer
  • Innen (aufrecht)
  • IP65(aufrecht)
  • Rot
  • Orange
  • Grün

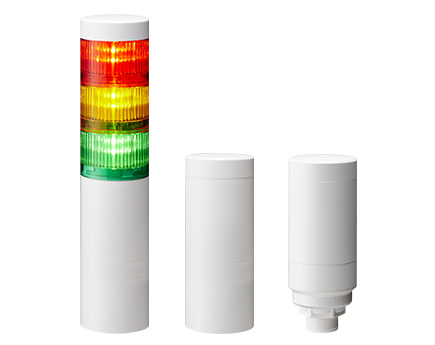

  • IO-Link Signalsäule LR6-IL
  • Nahtlose Integration mit dem IO-Link Master. Weitere Informationen zu IO-Link erhalten Sie unter
  • Eingebauter 5-poliger M12 Steckverbinder für eine einfache und schnelle Installation.

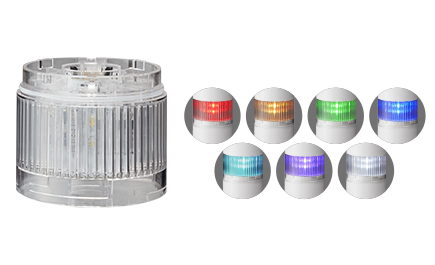

  • Wählen Sie bis zu 5 farbige oder transparente LEDs oder eine Multicolor LED Einheit.

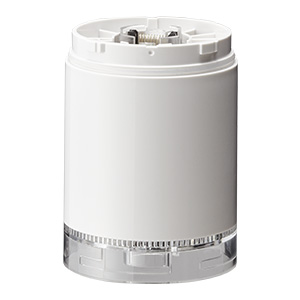

  • Ein Buzzer für einen zusätzlichen akustischen Alarm sowie ein System zur drahtlosen Datenerfassung sind optional erhältlich.
  • Das einfache Twist&Lock System der vollmodularen Signalsäule ermöglicht eine leichte Konfiguration von LED Modulen und optionalen Teilen.
  • Klicken Sie hier, um eine Anleitung zur IO-Link-Verbindung mit der "NX Series IO-Link Master Unit" der OMRON Corporation zu erhalten.
    (Bei Fragen zu diesem Dokument wenden Sie sich bitte an die OMRON Corporation.)


Modellnummer Vormontiertes Modell

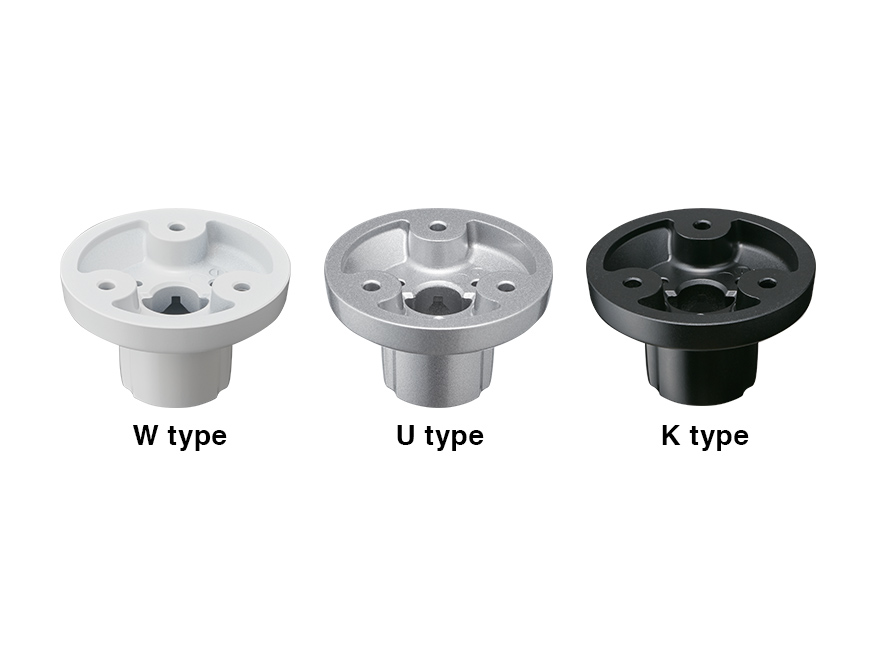

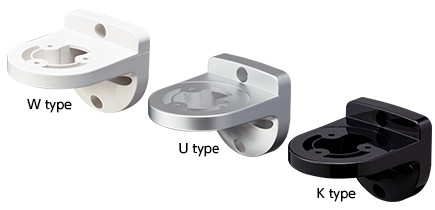

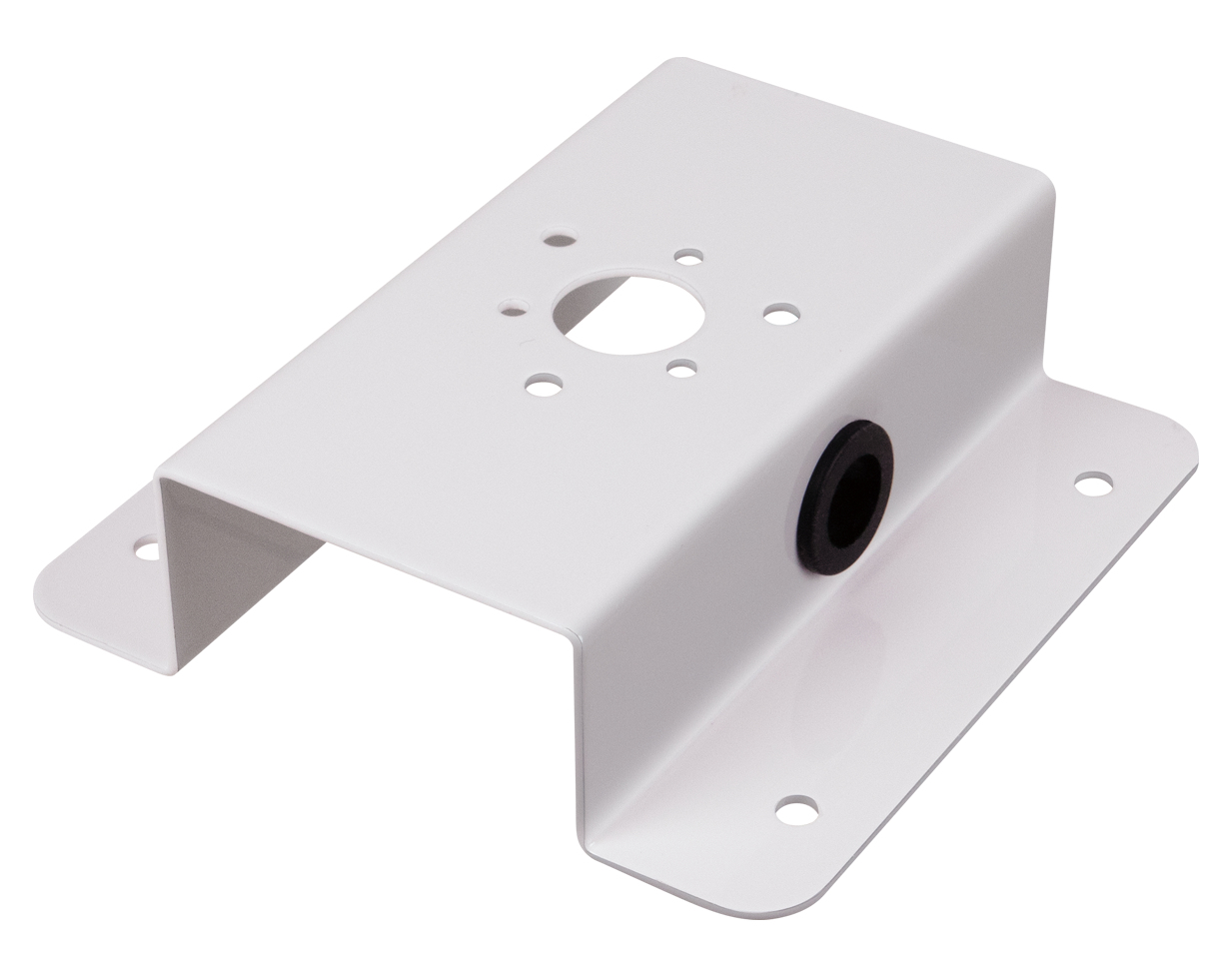

(1/2" NPT-Rohr oder direkte Montage)
Durchmesser 60mm
Anzahl LEDs Anzahl LEDs: max. 5 LEDs und eine Buzzer Einheit

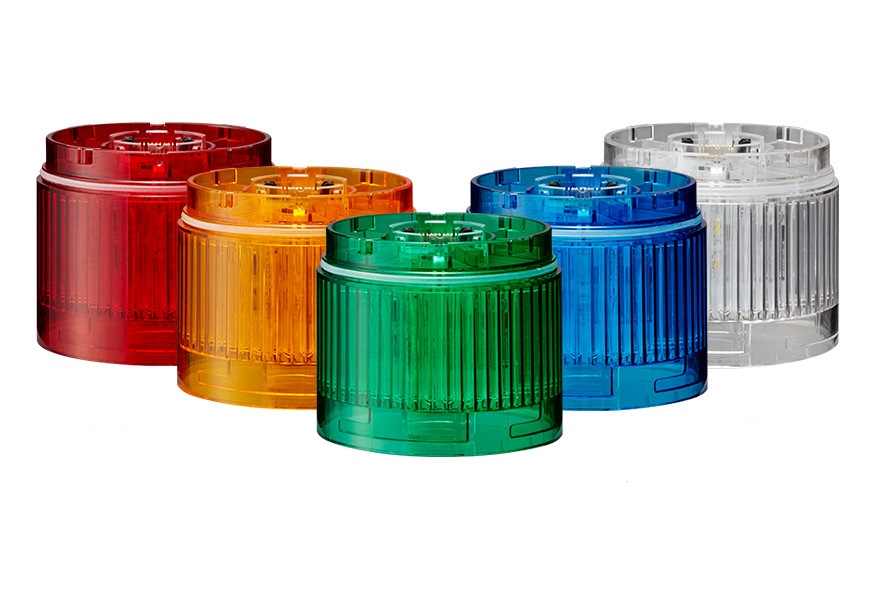

LED-Einheiten Rot/Gelb/Grün
(Hinzufügen oder Ändern von LED-Einheiten ist möglich)

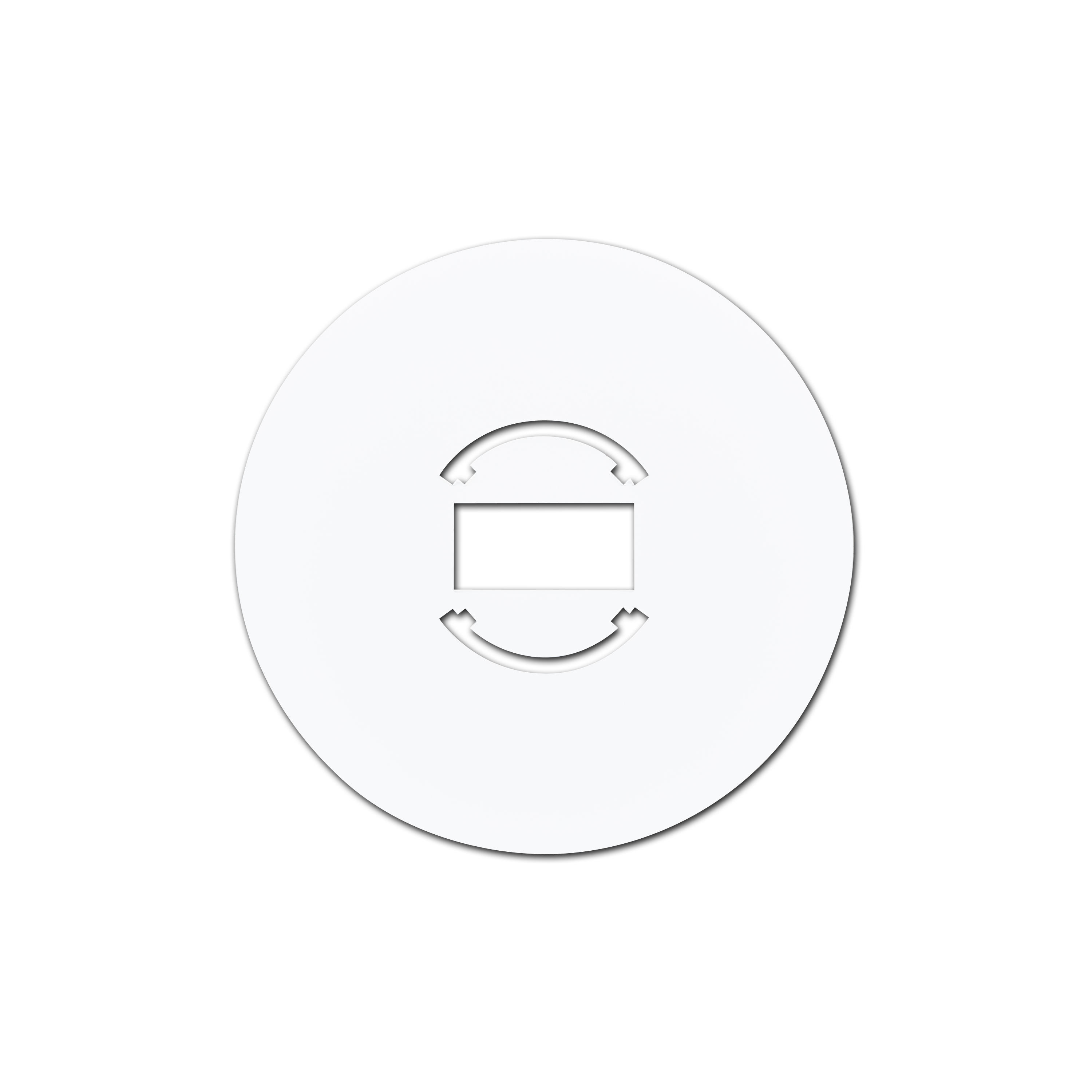

Separat erhältlich Separat erhältlich
Lichtsteuerung Kontinuierlich / blinkt
Schallpegel des Buzzers Typ. 84dB (Verwenden Sie LR6-BW)
Buzzer Töne 4 Typen (wählbar) (LR6-BW verwenden)
Schutzklasse IP65 (NEMA Typ. 4x, 13)
Verdrahtung M12 Steckverbinder 5-polig
