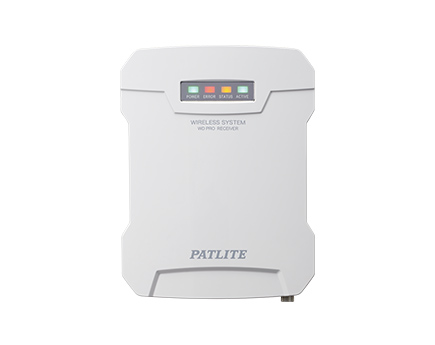

Drahtloses Datenerfassungsystem-Empfänger WD PRO

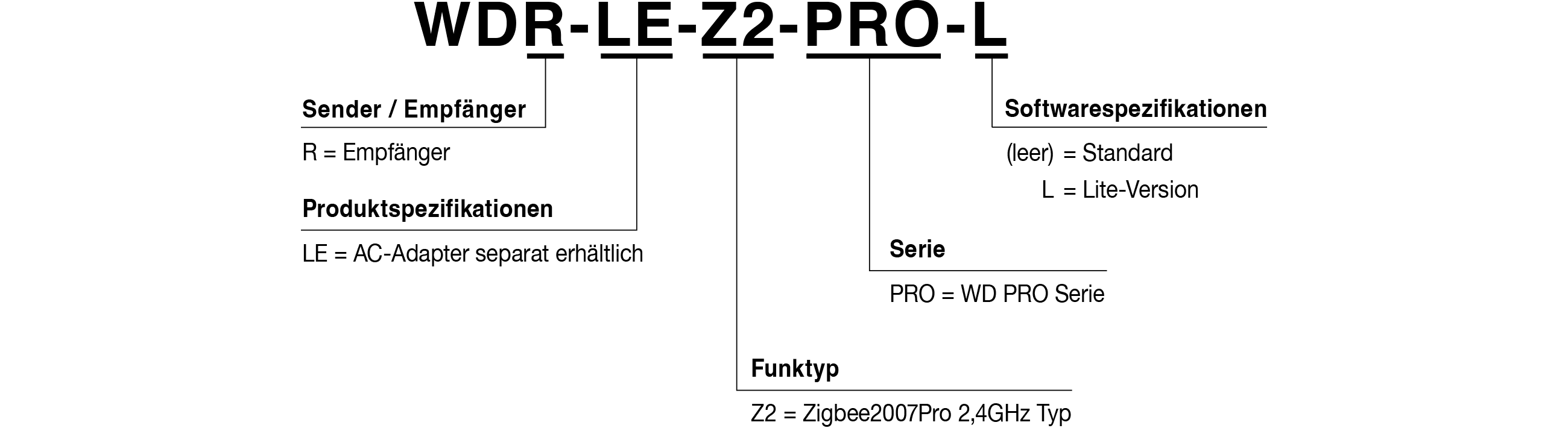

WDR-LE-Z2-PRO

Der WDR-LE-Z2-PRO (WD PRO Receiver) ist ein Empfänger und Teil des Systems für die drahtlose Datenerfassung von PATLITE. Die drahtlose Datenerfassung kann die optischen und akustischen Signale angebundener Signalsäulen in Echtzeit erfassen, welche zur Verbesserung der OEE und Produktivität in einer CSV Datei exportiert werden können. Der WD PRO Receiver ist eine erweiterte Version seines Vorgängers und unterstützt viele Variationen von Protokollen, ermöglicht die einfache Kommunikation mit dem Leitrechner sowie weiteren Endgeräten Ihres Netzwerkes.

  • Drahtlose Produkte
  • Drahtlose(Zigbee2007Pro2.4GHz);receivedfromWDT
  • Ethernet(PC-EinstellungenundAnwendungen)
  • Innen (horizontal, Wand, Decke)
  • IP20
  • Drahtloses Datenerfassungsystem-Empfänger WD PRO WDR-LE-Z2-PRO
  • PoE
     Der WD PRO Receiver ermöglicht die Übertragung von Leistung und Daten über eine einzelne Ethernet Leitung und reduziert somit die Kosten und Aufwand der Verdrahtung.
  • Montagezubehör
     Das Gehäuse des WD PRO Receivers wird auf eine Oberflächen- Halterung geklickt.
     Das ermöglicht die einfache De- und Remontage, sowie die vielseitige Möglichkeiten von Montagewinkeln.
  • Drahtlose Verbindungsdiagnose
     Der WD PRO Receiver prüft die Qualität der drahtlosen Verbindung zwischen Empfänger und den angebundenen Transmitter.
     Bis zu 72 Stunden können die Ergebnisse der Diagnose (im 10 Minuten Takt) erfasst werden.
     Es gibt 5 Level an Ergebnissen der Diagnose, die dem Nutzer ermöglichen bei Bedarf die Einstellungen und Installation seiner Struktur anzupassen.
     Die gesammelten Daten können einfach über die Einstellungen im Browser gesichtet werden.
  • Andon Display
     Der Echtzeit- Status (optisch und akustisch) aller angebundenen Signalsäulen kann über den Browser auf Ihren Bildschirm angezeigt werden.
     Das kann parallel zur Datenerfassung per CSV Datei erfolgen.
  • Kollaboration Funktion
     Zusätzlich zum simple SOCKET Protokoll hat der WD PRO Receiver eine Kollaboration Funktion bei der Nutzung von Modbus/TCP und SQL Database.
       Diese Protokolle vereinfachen die Kommunikation und Datenerfassung zwischen den Geräten und Ihrem Netzwerk.



Spezifikation

Model Drahtlose Datenerfassung System
WD PRO Receiver
WDR-LE-Z2-PRO
Drahtlose Datenerfassung System
WD PRO Receiver〈Lite version〉
WDR-LE-Z2-PRO-L
Spannungsversorgung Eingang 24V DC / USB / PoE
Montage Horizontale Montage / Wandmontage / Deckenmontage
Netzwerk Kommunikation 10BASE-T / 100BASE-TX / 1000BASE-T
Transmitter Verbindung Maximum 30 Sender
Kommunikation Reichweite Direkte Linie ca. 30m *1
IP Adresse Einstellung Manuelle Einstellung / DHCP auto Konfiguration
Temperatur Arbeitsumgebung -10℃~+50℃ (AC Adaptar: 0℃~+40℃)
IP Schutz IP20
Drahtlose Verbindungsdiagnose Echtzeit-Diagnose / Langzeit Diagnose (1~72 Stunden)
Transmitter Drahtlose Einstellung Built-in Einstellung über Browser / WDS-WIN01 Software Use WDS-WIN01
Host System Communication ・CSV Datei *Use WDS-WIN01・SOCKET Kommunikation
 (WDR Protokoll)・SOCKET Kommunikation
 (WDR PRO Protokoll)・Database linkage (MySQL)・Modbus/ TCP Kommunikation
WD-PRO ・CSV Datei *Use WDS-WIN01・ SOCKET Kommunikation
 (WDR Protokoll)
Andon Display ×

※1 Aufgrund der Eigenschaften von Funkverbindungen handelt es sich hier nur um einen Referenzwert.
