Signalturmserie der neuen Generation mit ultrahellen LEDs, modularem Design und einer großen Auswahl von Optionen für selbst größte Herausforderungen.

  • Kontaktsteuerung
  • Signalsäule
  • Φ40
  • Dauerlicht/Blinken
  • Summer
  • 85dB
  • Innen (aufrecht)
  • IP65(aufrecht)
  • IP54(aufrecht)(L)(Mast+L-Klammer)Typ)
  • Rot
  • Orange
  • Grün
  • Blau
  • Weiß

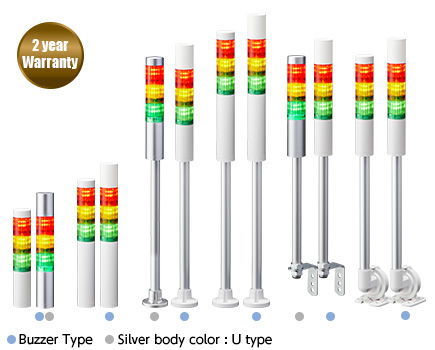

  • 40mm-LED-Signalsäule LR4
  • Lichtglas mit neuem Design, verbesserte Modulbauweise mit hellem, gleichmäßigem Licht für Sichtbarkeit aus größeren Entfernungen.
  • Überarbeitetes, ganzumschlossenes Tonmodul, lang-anhaltender Wasser- und Staubschutz, hohe Lautstärke und omnidirektionale Schallausbreitung. (LR5 DC12V: 80dB LR4 & LR5: 85dB, LR6: 88dB, LR7: 90dB bei 1m Abstand)
  • Modulares "Dreh-und-Einrast"-Design für mühelose individuelle Anpassung und Konfigurierung der LED-Einheiten und Tonmodule.
  • Schlankes, elegantes Design bei robuster Bauweise für hohe Leistungsstärke in rauer Umgebung, ausgelegt auf Schutzklasse IP65.

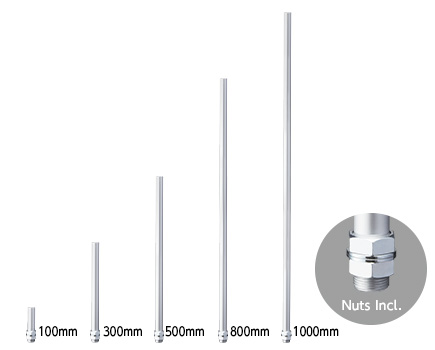

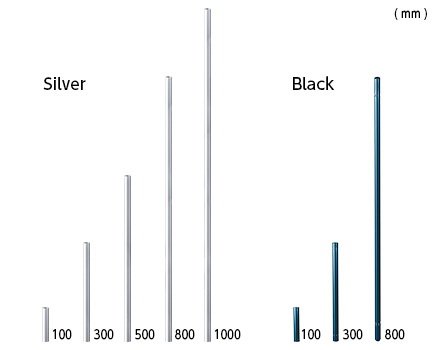

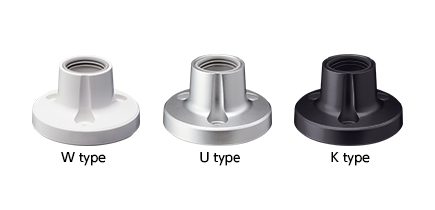

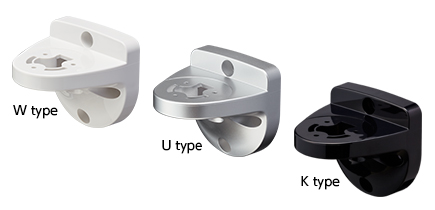

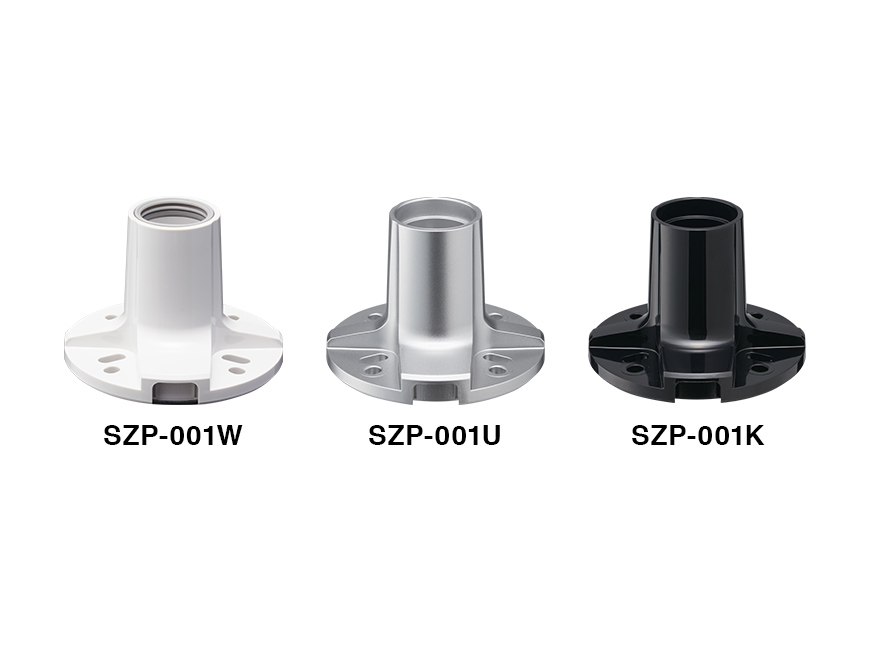

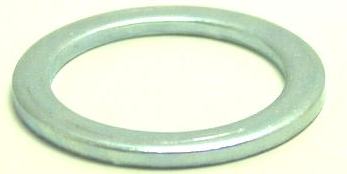

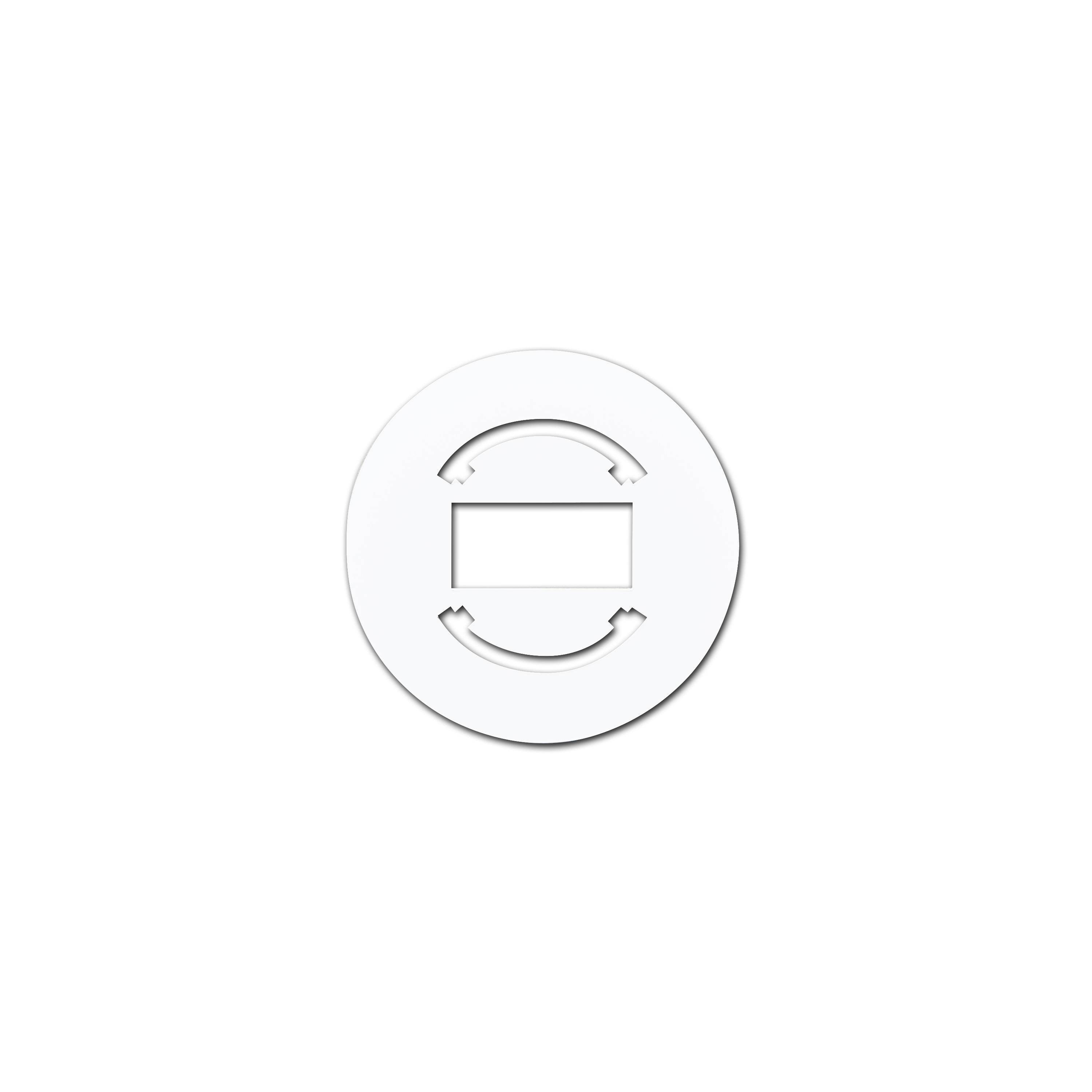

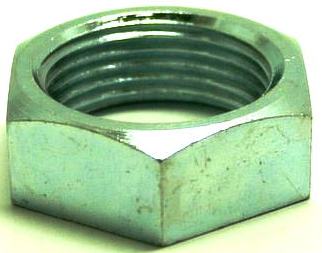

  • Vier Montageoptionen: Direktmontage, Stangenmontage mit L-Halterung, Stangenmontage mit Rundhalterung, Stangenmontage mit Klapphalterung (nur cremefarben).
  • Verfügbar in DC 24V und AC 100-240V (nur cremefarben).
  • Gehäuse verfügbar in cremefarben und silber.
  • Verfügbar mit klarem Lichtglas (Zusatzausstattung).

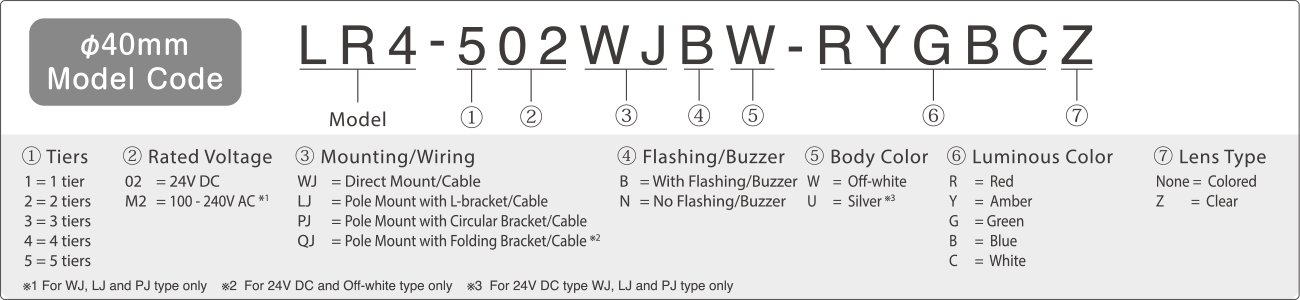

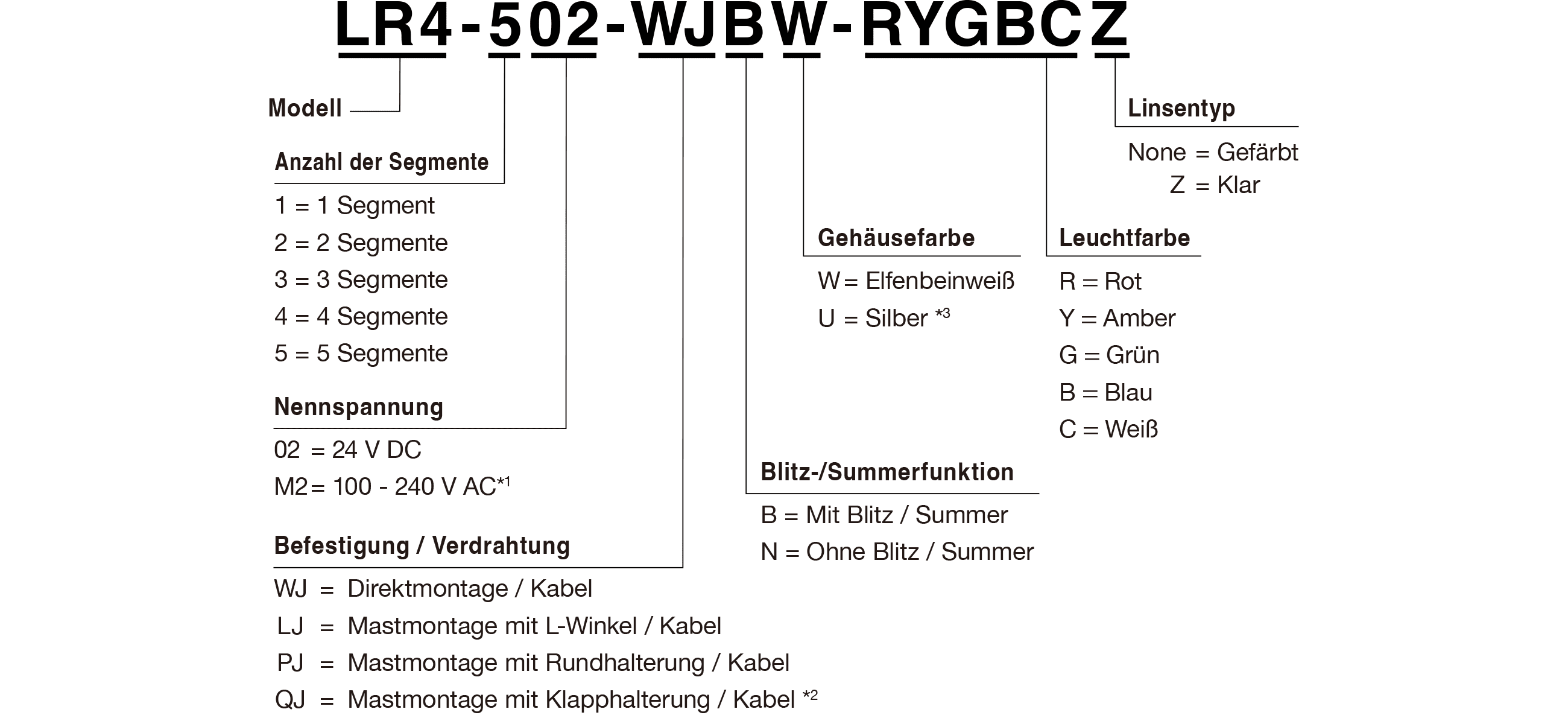

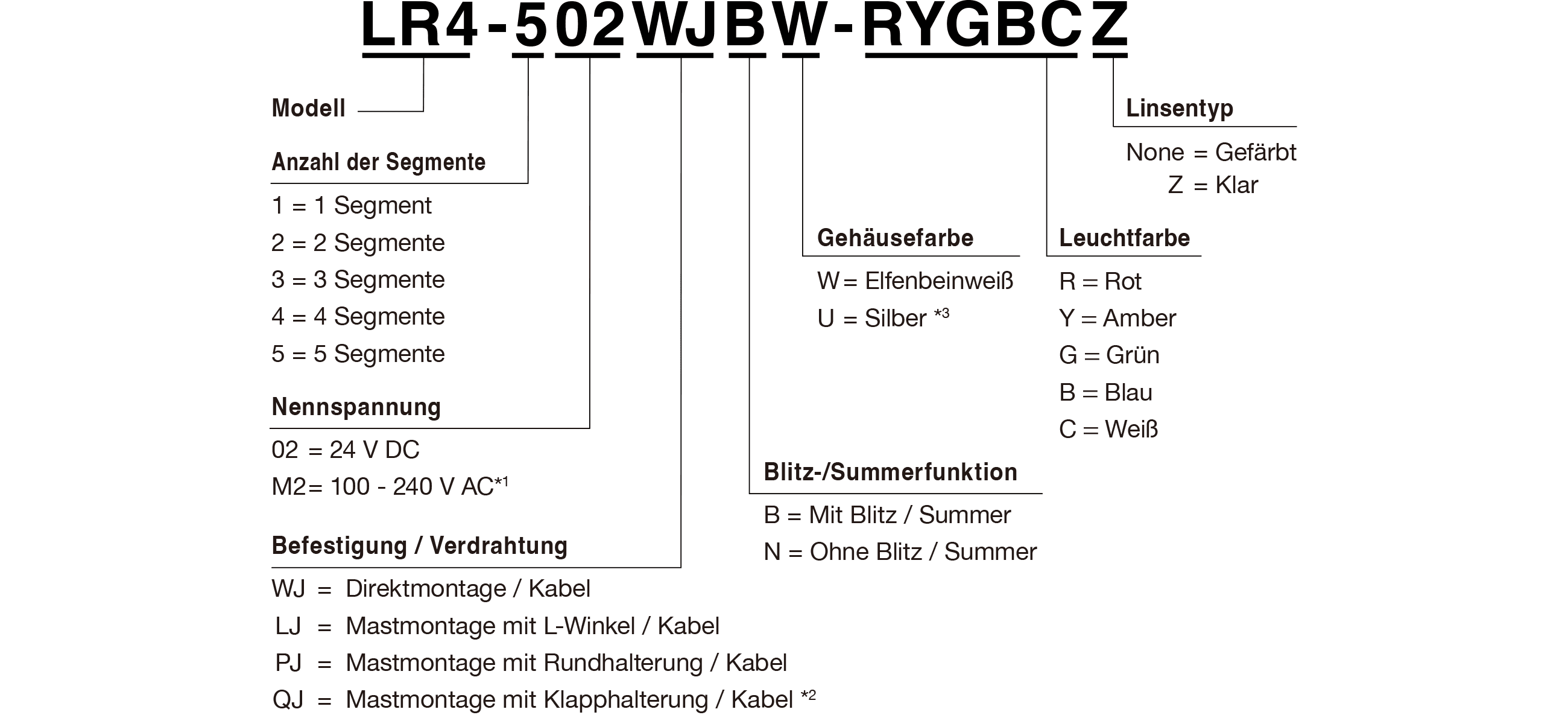

Model Code


Technische Daten

Umgebungstemperatur Betrieb -20℃ - +50℃
Betriebsfeuchtigkeitsbereich 90% rF (relative Luftfeuchtigkeit) oder weniger, keine Kondensation
Lagertemperaturbereich -30℃ - +60℃
Lagerfeuchtigkeitsbereich 90% rF (relative Luftfeuchtigkeit) oder weniger, keine Kondensation
Befestigungsort Verwendung im Innenbereich
Montagerichtung Aufrechte Position
Schutzklasse*1 IP65(IEC 60529) / NEMATYP 4X, 13
Umgebungsbedingungen Aufrechte Position
Isolationswiderstand Über 1MΩ bei DC500V zwischen Stromeingangsleitung und Gehäuse
Stehspannung AC 500V für 1 Minute zwischen Klemmen und Gehäuse ohne Beschädigung der Isolierung (M2: AC 1500V für 1 min.)
Blinktakt 60 ±2 Blinks / min
Schallpegel LR4Typ. 85dB
Lautstärkereduzierung*2 ab. -10dB Reduzierung
Umgebungsbedingungen Signalton Nr. 4 (Zischen) aus allen Richtungen bei 1m Abstand
Summerton 4 Muster*2Nr.1Ton mit kurzen Unterbrechungen Nr.2Durchgehender Ton Nr.3Schneller Hoch/Tief-Takt Nr.4Zischton
Transistorausgang NPN / PNP (AC 100 - 240V ist nur NPN)
Normen ●UL 508, CSA-C22.2 No.14
●FCC Part 15 Subpart B Class A
●RoHS-Richtlinie (EN IEC 63000)
●EMV-Richtlinie (EN 61000-6-4, EN 61000-6-2)
●KC (KN 61000-6-4, KN 61000-6-2)*3
●Niederspannungsrichtlinie (IEC/EN 60947-5-1, EN62471)*4

*1: Typ LJ: IP54   *2: Je nach Einstellungen des DIP-Schalters   *3: Außer Typ KT und M2 LJ   *4: Nur Typ M2 (außer Typ LJ)


Kenndaten LED-Einheiten

Farbe Rot Gelb Grün Blau Weiß
Stromaufnahme Typ. 0,04A/1W
Max. 0,045A/1,3W


Kenndaten Signaltoneinheit

Stromaufnahme Typ. 0,04A/1W
Max. 0,3A/1,3W
