56mm Signal Beacon
NE-A
56mm Signal Beacon
LED Signal Light Series featuring mono-color or multi-color models with a capacitive touch sensor and rugged housing for maximum versatility.

Produktmerkmale

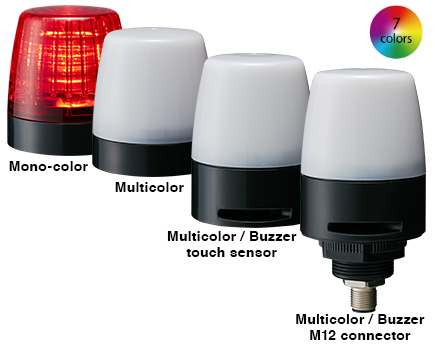

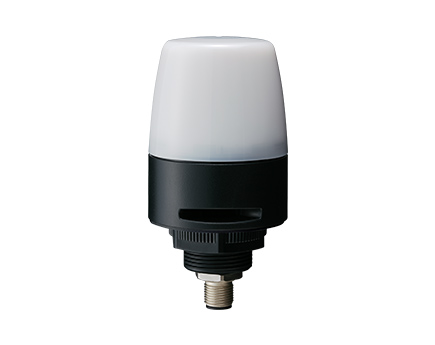

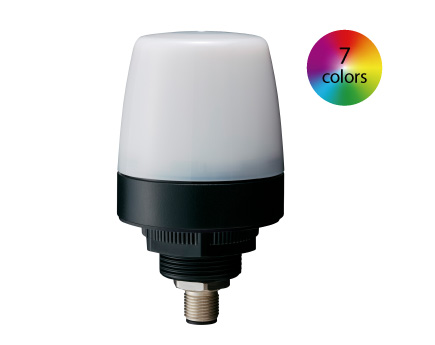

Multi-color model

【Multi-color Model】



  • Capacitive touch sensor enables real-time status confirmations
  • Features simultaneous use of continuous, flashing, and audible alarm conditions
  • Up to 7 selectable LED colors
  • Toggle between 4 patterns (red, blue, white, or off) while in touch sensor mode
  • High protection rating for operation in harsh environments




    • Single color Model


    【Mono-color Model】


  • Choose from 5 LED color options (Red, Amber, Green, Blue, White)
  • Newly developed reflector emits evenly distributed light, for clear, unambiguous indication
  • High protection rating for operation in harsh environments







    • Model Specifications

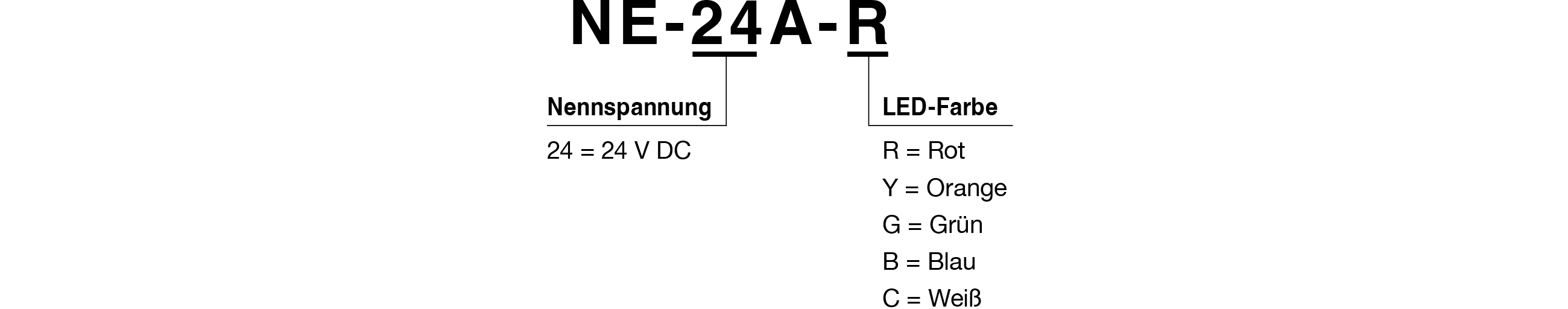

    ModelNE-24A-□

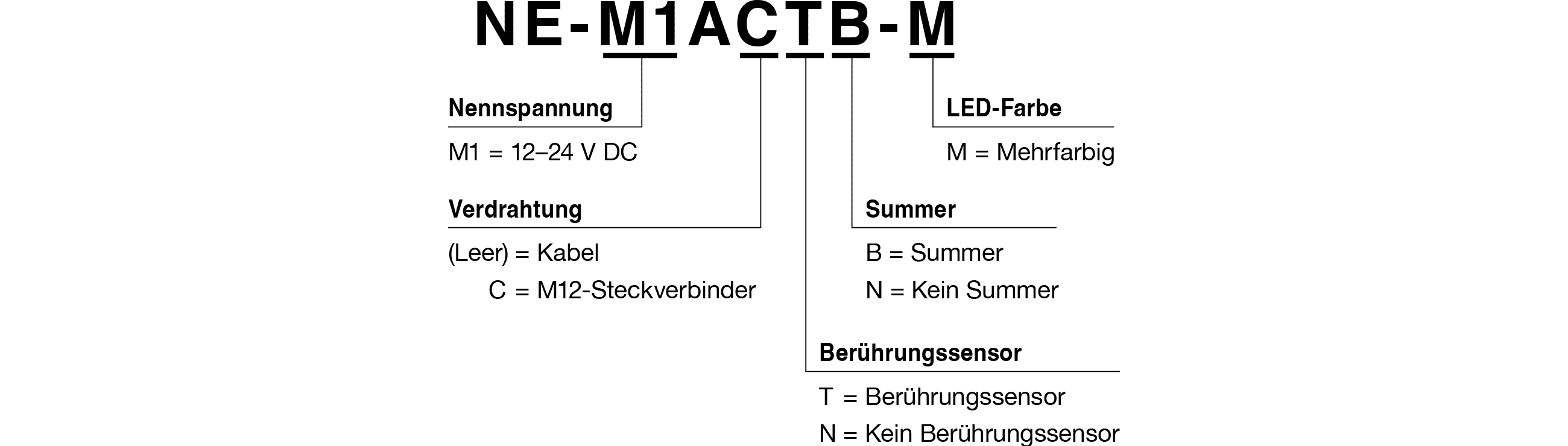

    □：R/Y/G/B/C    		NE-M1ANN-MNE-M1ANB-MNE-M1ATB-M
    DimensionsΦ56mm
    Operating Voltages24V DC12-24V DC
    Mounting locationIndoor
    mounting directionall directions
    Protection RatingIP65
    NEMA TYPE 4X, 13    		IP67
    NEMA TYPE 4X, 13    		IP65
    NEMA TYPE 4X, 13
    Light Color OptionsRed / Amber / Green /
    Blue / White    		Multi-color ( Red / Amber / Green / Blue / White / Cyan / Purple )
    Sound Pressure-88dB
    Intermittent or Continuous
    Operation
    Specification    		ContinuousContinuous / FlashingContinuous /
    Touch sensor
    WiringScrewless terminal blockCabtire cable (2m)
